UNIMETRO RANGER600 Tool Inspection System with Windows 10 OS 24" LCD Monitor and Linear Scale Resolution 0.0001mm Vision Measurement Machine

UNIMETRO RANGER600 Tool Inspection System with Windows 10 OS 24" LCD Monitor and Linear Scale Resolution 0.0001mm Vision Measurement Machine
UNIMETRO RANGER600 Tool Inspection System with Windows 10 OS 24" LCD Monitor and Linear Scale Resolution 0.0001mm Vision Measurement Machine UNIMETRO RANGER600 Tool Inspection System with Windows 10 OS 24" LCD Monitor and Linear Scale Resolution 0.0001mm Vision Measurement Machine UNIMETRO RANGER600 Tool Inspection System with Windows 10 OS 24" LCD Monitor and Linear Scale Resolution 0.0001mm Vision Measurement Machine UNIMETRO RANGER600 Tool Inspection System with Windows 10 OS 24" LCD Monitor and Linear Scale Resolution 0.0001mm Vision Measurement Machine UNIMETRO RANGER600 Tool Inspection System with Windows 10 OS 24" LCD Monitor and Linear Scale Resolution 0.0001mm Vision Measurement Machine
اطلاعات پایه
محل منبع: گوانگدونگ ، چین
نام تجاری: UNIMETRO
شماره مدل: رنجر 600
مقدار حداقل تعداد سفارش: 1
قیمت: $15,600-22,000
بهترین قیمت اکنون تماس بگیرید
اطلاعات تکمیلی
X Axis Travel: 80 میلی متر سفر محور y: 60 میلی متر
محدوده محور Z: 60 میلی متر قطر ابزار حداکثر: 50 میلی متر
طول ابزار حداکثر: 300 میلی متر فاصله کار: 90 میلی متر
نوع لنز: لنز زوم 0.7-4.5 برابری وضوح دوربین: دوربین 2M پیکسل HD/دوربین 5M پیکسل HD (اختیاری)
وضوح مقیاس خطی: 0.0001 میلی متر دامنه بزرگنمایی: 12.6x ~ 79.2x/25.2x ~ 158.4x (اختیاری)
حوزه: 27*20mm ~ 4.3*3.3mm/13.5*10mm ~ 2.3*1.6mm (اختیاری) اندازه گیری دقت: x ~ y ، (2.5+l/100) میکرومتر ، l طول اندازه گیری شده است
سیستم کامپیوتر: سیستم رایانه ای همه در یک ، ویندوز 10 سیستم عامل ، 24 "مانیتور LCD نوع روشنایی: 8 بخش چراغ حلقه LED ، نور کانتور ، نور کمکی انعطاف پذیر
فرمت ورودی: پرونده های DXF قالب خروجی: اکسل ، DXF
برجسته کردن:

Windows 10 OS Tool Inspection System,24 LCD Monitor Vision Measurement Machine,Linear Scale Resolution 0.0001mm VMM Machine

,

24 LCD Monitor Vision Measurement Machine

,

Linear Scale Resolution 0.0001mm VMM Machine

توضیحات محصول

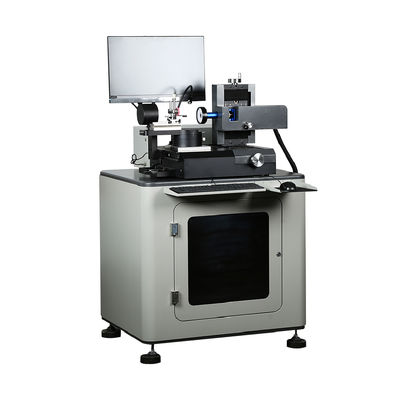

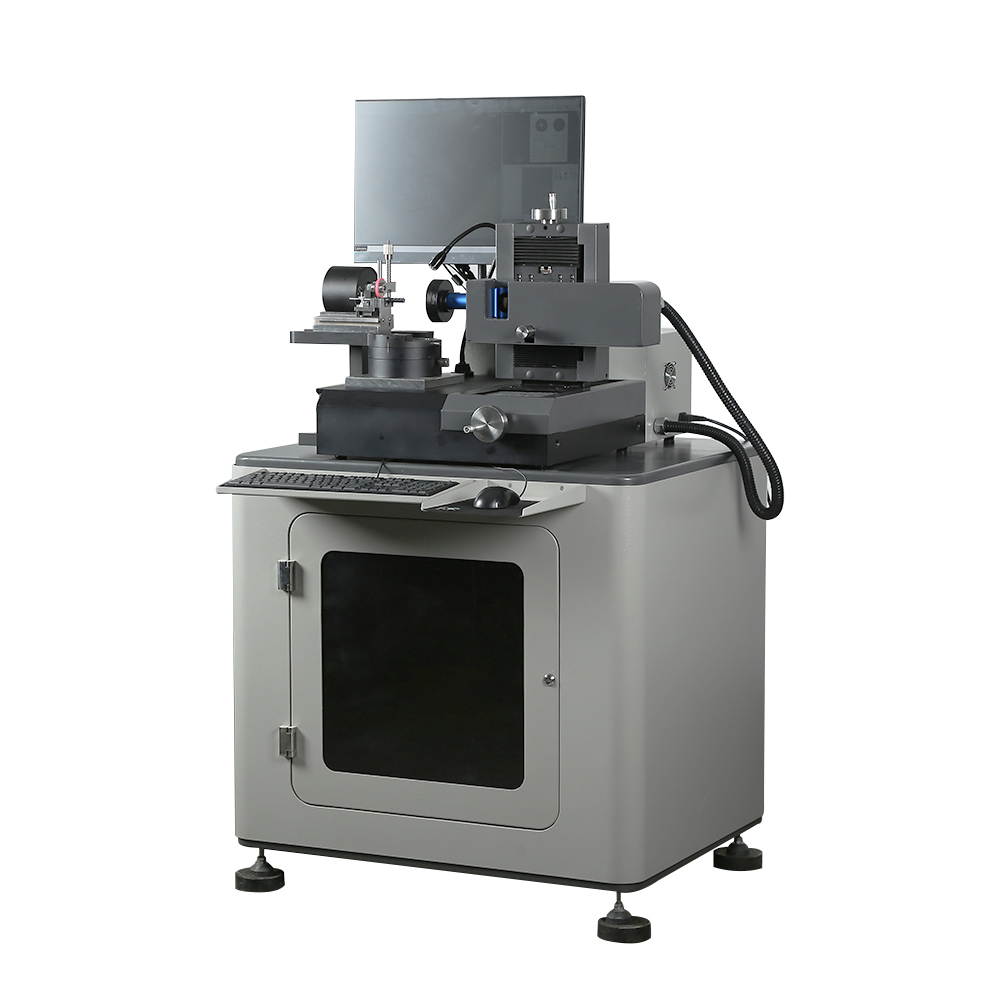

UNIMETRO RANGER600 Tool Inspection System
The universal measuring machine for drills, milling cutters and countersinks with flexible illuminating system. Compact design and great stability make it suitable for metrology rooms, receiving inspection, or direct production use.
UNIMETRO RANGER600 Tool Inspection System with Windows 10 OS 24" LCD Monitor and Linear Scale Resolution 0.0001mm Vision Measurement Machine 0 UNIMETRO RANGER600 Tool Inspection System with Windows 10 OS 24" LCD Monitor and Linear Scale Resolution 0.0001mm Vision Measurement Machine 1
Key Features
  • SMARTOOL universal measuring software for all metal cutting tools
  • PUT-MEASURE-ANALYSE measuring process
  • Compact and stable design for versatile placement
  • Complete control of special tool geometries
Technical Specifications
X axis travel 80mm
Y axis Travel 60mm
Z axis measuring range 60mm
Max tool Diameter 50mm
Max tool length 300mm
Working distance 90mm
Lens 0.7-4.5X dented zoom lens
Camera 2M pixel HD camera/5M pixel HD camera (Optional)
Linear scale resolution 0.0001mm
Magnification 12.6X~79.2X/25.2X~158.4X (Optional)
Measuring accuracy X~Y,(2.5+L/100)µm, L is the measured length
PC ALL-IN-ONE PC system, Windows 10 OS, with 24" LCD monitor

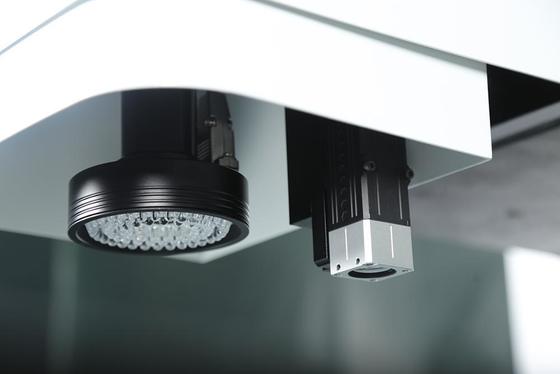

Illumination 8 sections LED ring light, contour light and flexible auxiliary light
Advanced Design Features
  • Ergonomic design and solid construction
  • HD image capturing with optional microscope magnification

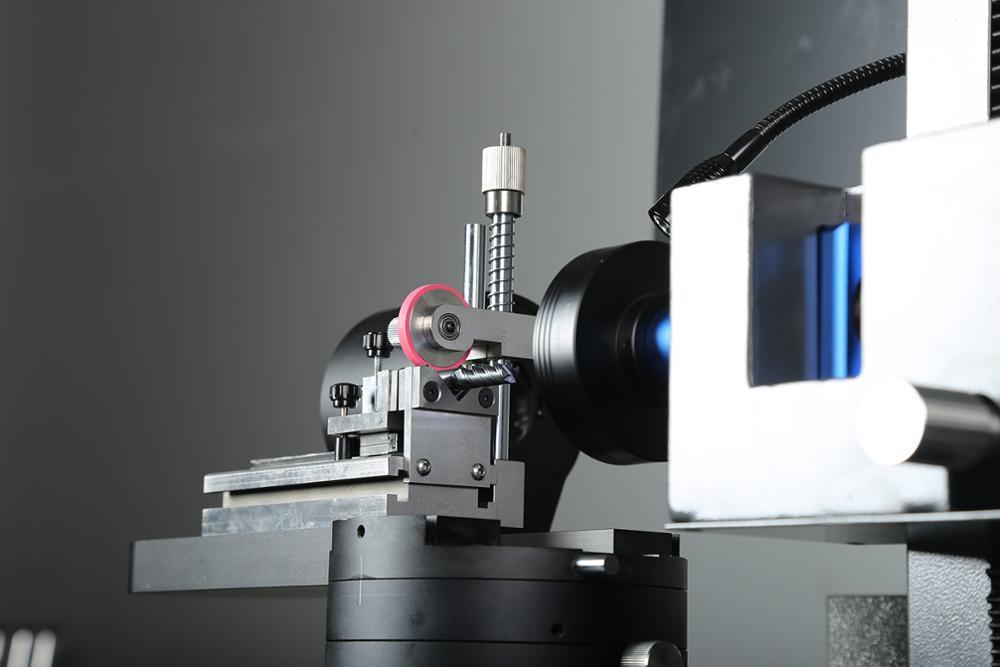

  • Stable V block for tool holding and alignment
  • Mechanical fixed measuring angles (0° and 90°)
  • High accuracy embedded encoder in rotary table
  • Programmable LED lighting system
  • SMARTOOL measuring software with automatic edge detection
  • Fast output to EXCEL or CAD files
Multiple Angle Measurement Capabilities
The rotary table offers mechanical fixed angles at 0° and 90° positions. The embedded encoder provides precise angle location for measurements including:
UNIMETRO RANGER600 Tool Inspection System with Windows 10 OS 24" LCD Monitor and Linear Scale Resolution 0.0001mm Vision Measurement Machine 2 UNIMETRO RANGER600 Tool Inspection System with Windows 10 OS 24" LCD Monitor and Linear Scale Resolution 0.0001mm Vision Measurement Machine 3
SMARTOOL Measuring Software
Developed based on high accuracy optical and digital measuring technology, offering numerous measuring and evaluation algorithms specifically for grinding business tools.
Software Features
UNIMETRO RANGER600 Tool Inspection System with Windows 10 OS 24" LCD Monitor and Linear Scale Resolution 0.0001mm Vision Measurement Machine 4 UNIMETRO RANGER600 Tool Inspection System with Windows 10 OS 24" LCD Monitor and Linear Scale Resolution 0.0001mm Vision Measurement Machine 5
  • Graphical operation interface with high resolution display
  • Dynamic real-time edge detection curve view
  • Fast angle measuring with reticle
  • CAD comparison function for tool geometry evaluation
Measurement Capabilities
UNIMETRO RANGER600 Tool Inspection System with Windows 10 OS 24" LCD Monitor and Linear Scale Resolution 0.0001mm Vision Measurement Machine 6 UNIMETRO RANGER600 Tool Inspection System with Windows 10 OS 24" LCD Monitor and Linear Scale Resolution 0.0001mm Vision Measurement Machine 7 UNIMETRO RANGER600 Tool Inspection System with Windows 10 OS 24" LCD Monitor and Linear Scale Resolution 0.0001mm Vision Measurement Machine 8
About UNIMETRO
Professional manufacturer of metrology equipment with over 10 years experience, offering high performance products with reasonable pricing and comprehensive support.
Our Service
  • 24/7 online support via multiple channels
  • Fast delivery from spot stock
  • 1 year warranty with free software upgrades
  • Technical training for engineers
  • Custom testing solutions
  • On-site installation and instruction
